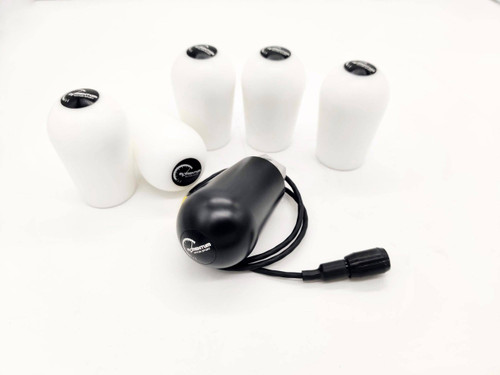

Load Cell Gear Lever

£450.00
(Inc. VAT)
£375.00
(Ex. VAT)
(No reviews yet) Write a Review

If you are unsure whether this part is suitable for your vehicle, please get in touch through our Your Project page, supplying your Make, Model and Reg or VIN, plus details of your project.

A high quality analogue load cell for full-throttle gear-cut triggering.

Load cells are still the most popular choice in professional motorsport for triggering a full-throttle shift cut because of their easy installation, repeatable operation and simple setup.

Unlike other methods of triggering, such as linear potentiometers, microswitches or proximity switches that detect the physical position of the gear lever, a load cell measures the applied force.

Load cells are highly sensitive analogue instruments, which means that the electronics can be accurately configured to detect the onset of a gear shift before there is any physical movement of the gear lever or shift drum. This is exactly the opposite to what is erroneously claimed by some.



The unit requires an unregulated 12v supply, and provides an output of 0.5v to 4.5v which is biased at 2.5v when no load is applied. When mounted in the conventional orientation, the output voltage increases for upshifts and decreases for downshifts. It can therefore be used to trigger an upshift engine cut or a downshift throttle blip.

This unit is fully compatible with our Easyshift ECU or most high-end engine management systems that can accept an analogue input.



Perfect for closed loop shifting with the Quaife QKE6V gearbox
