This adaptor plate is installed between the boost (MAP) sensor and its mounting Boss. This allows for a takeoff to run a vacuum operated valve or for connection to a boost gauge, without having to cut into any original equipment.
Vacuum hose, cable ties, and fitting instructions are supplied and the installation is fully reversible.
Compatible with the following BMW MAP sensors:
13627551429
13627585493
13627599042
13627843531
BMW Compatible Vehicles:
1' F20 (07/2010 — 02/2015)
1' F20 LCI (05/2014 — 06/2016)
1' F21 (07/2010 — 02/2015)
1' F21 LCI (09/2014 — 06/2016)
2' F22 (10/2012 — 06/2016)
2' F87 M2 LCI (10/2016 — 12/2018)
2' F23 (04/2014 — 06/2016)
3' F30 (02/2011 — 01/2016)
3' F30 LCI (10/2014 — 10/2018)
3' F80 M3 (04/2012 — 06/2015)
3' F80 M3 LCI (01/2015 — 10/2018)
3' F31 (07/2011 — 06/2015)
3' F31 LCI (12/2014 — 06/2016)
3' F34 GT (07/2012 — 06/2016)
3' F35 (06/2011 — 08/2015)
3' F35 LCI (01/2015 — 08/2016)
4' F32 (11/2012 — 01/2017)
4' F82 M4 (02/2013 — 02/2017)
4' F82 M4 LCI (05/2016 — 12/2018)
4' F33 (03/2013 — 02/2017)
4' F83 M4 (06/2013 — 02/2017)
4' F83 M4 LCI (05/2016 — 12/2018)
4' F36 Gran Coupé (07/2013 — 12/2016)
5' F07 GT LCI (08/2012 — 02/2017)
5' F10 (06/2010 — 10/2016)
5' F10 LCI (10/2012 — 10/2016)
5' F11 (06/2010 — 06/2013)
5' F11 LCI (10/2012 — 02/2017)
5' F18 (03/2011 — 08/2013)
5' F18 LCI (10/2012 — 04/2017)
5' F90 M5 (01/2016 — 12/2018)
6' F06 Gran Coupé (10/2011 — 02/2015)
6' F06 Gran Coupé LCI (09/2014 — 09/2018)
6' F12 (03/2011 — 02/2015)
6' F12 LCI (05/2014 — 05/2018)
6' F13 (03/2011 — 02/2015)
6' F13 LCI (06/2014 — 10/2017)
X1 E84 (04/2009 — 12/2015)
X3 F25 (02/2011 — 08/2017)
X4 F26 (05/2013 — 03/2018)
X5 F15 (10/2014 — 06/2018)
X5 M F85 (04/2013 — 06/2018)
X6 F16 (11/2014 — 12/2018)
X6 M F86 (10/2013 — 12/2018)
Z4 E89 (01/2011 — 08/2016)
MS BMW Motorsport ( — )

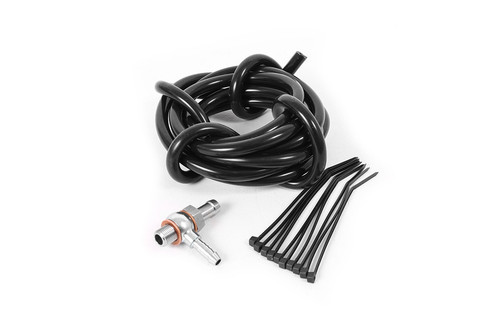

In the Box:
Small Forge Sticker
3.5mm Black Vac Port
Cable ties (x10)
Fixing screws (x2)
4mm Vacuum Hose (x3m)
Vehicle compatibility
- BMW / M3 / E90/E92 Coupe/Covertible 2007-2013 (S65)
- BMW / 3 Series / E90/E91/E92/E93 Coupe/Convertible/Saloon/Estate 2004-2013 / 335D 2006-2013 (N57)
- BMW / 4 Series / 430D / F32 F33 F36
- BMW / 4 Series / 435d / F32 F33 F36
- BMW / 1 Series / F20/F21 2012-2019 / 114i 2012-2015 (N13)
- BMW / 1 Series / F20/F21 2012-2019 / 116i 2012-2015 (N13)
- BMW / 1 Series / F40 2019-2024 / 116i 2019-2024 (B38)
- BMW / 1 Series / F20/F21 2012-2019 / 118i 2012-2015 (N13)
- BMW / 1 Series / F40 2019-2024 / 118i 2019-2024 (B38)
- BMW / 1 Series / F20/F21 2012-2019 / 120i 2015-2016 (N13)
- BMW / 1 Series / F20/F21 2012-2019 / 120i 2016-2018 (B48)
- BMW / 1 Series / F20/F21 2012-2019 / 125i 2012-2015 (N20)
- BMW / 1 Series / F20/F21 2012-2019 / 125i 2016-2018 (B48)
- BMW / 1 Series / F20/F21 2012-2019 / M135i 2012-2015 (N55)
- BMW / 1 Series / F20/F21 2012-2019 / M135i 2015-2016 (N55)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 220i 2014-2016 (N20)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 228i 2014-2016 (N20)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / M235i 2014-2016 (N55)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / M240i 2016-2021 (B58)
- BMW / 2 Series / F87 2Dr Coupe 2015-2021 / M2 2015-2017 (N55)
- BMW / 2 Series / F87 2Dr Coupe 2015-2021 / M2 Competition 2017 (S55)
- BMW / 1 Series / F40 2019-2024 / 128ti 2019-2024 (B48)
- BMW / 1 Series / F40 2019-2024 / 120i 2019-2024 (B48)
- BMW / 3 Series / E46 Coupe/Convertible/Saloon/Estate 1997- 2006 / 320D
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 218i 2015 Onwards (B38)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 220i 2016 Onwards (B48)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 230i 2016 Onwards (B48)
Please check the part number, vehicle details and available options before ordering. Contact TSR Performance for fitment advice.
