Highlights:
- Reduced inlet air temperatures
- Better throttle response
- Fits both right and left hand drive vehicles
- Easy to fit
- Lifetime warranty
- Carbon Fibre
BMW designed the intake path to pull air from the low-pressure zone in front of the radiator, however during testing we found that there is a drop in performance at speeds above 35mph when compared to FMINLD2. By creating a direct air feed to the inlet tract, this helps to force air towards the airbox/intake helping with throttle response and keeping inlet air temperatures (IAT’s) at a reduced and more consistent temperature. A reduced consistent temperature is of great importance because any high temperature peaks will cause the ECU to retard the ignition and reduce the power you have available.
By utilising 3D Scanning and 3D Printing we were able to test several variations to find the optimum design to redirect the airflow. The BMW F20 M140i, F30 330D/335D had 3D printed variants fitted to them during the development process for long term road testing before we moved into the production process. Although the vehicles named above were the choice of our development engineers the inlet ducts are not limited to the vehicles in question; please look at our compatibility list for the full range of vehicles.

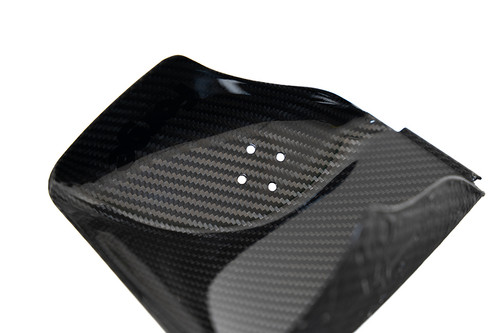

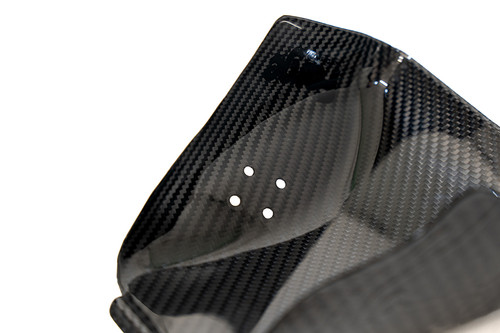

FMINLD2 is a simple bolt-on product which is easy to fit in approximately 45 minutes with no specialist tool, drilling or cutting required. Not only is the Forge part a better option for performance, but the carbon fibre really helps to give the front of your BMW a pleasant aesthetic appearance. The high-quality composite fibre is manufactured from 100% prepreg 2x2 carbon fibre twill formed in an autoclave from billet tooling and finished with an anti UV gloss gel coat. The Forge Motorsport lifetime warranty on all our hardware products shows the trust we have in the quality of our products while they are being enjoyed on your pride and joy.
FMINLD2 has been tested across multiple different F chassis vehicles and depending on your vehicle you will require a different sided inlet duct, or in some cases both. For example, the M140i has its intake on the driver’s side (RHD) and requires INLD2-P, the F30 330D/335D has its intake on the passenger’s side (RHD) and requires INLD2-D and if desired, you can fit both left and right with INLD2-M.
The below infographic helps to explain what inlet duct fits your
Vehicle compatibility
- BMW / 3 Series >F30/F31 Saloon/Estate 2011-2019 / 330D 2012-2019 (N57)
- BMW / 3 Series / F30/F31 Saloon/Estate 2011-2019 / 335D 2013-2019 (N57)
- BMW / 4 Series / 430D / F32 F33 F36
- BMW / 4 Series / 435d / F32 F33 F36
- BMW / 3 Series / F30/F31 Saloon/Estate 2011-2019 / 320i 2012-2015 (N20)
- BMW / 3 Series / F30/F31 Saloon/Estate 2011-2019 / 328i 2012-2019 (N20)
- BMW / M2 / M2 / F87 2Dr 2015-2017 (N55)
- BMW / M3 / F80 4Dr saloon 2014-2018 (S55)
- BMW / M4 / F82/F83 2Dr Coupe/Convertible 2014-2020 (S55)
- BMW / 4 Series / 4 Series / F32/F33
- BMW / 4 Series / F32/F33/F36
- BMW / 1 Series / F20/F21 2012-2019 / 114i 2012-2015 (N13)
- BMW / 1 Series / F20/F21 2012-2019 / 116i 2012-2015 (N13)
- BMW / 1 Series / F20/F21 2012-2019 / 118i 2012-2015 (N13)
- BMW / 1 Series / F20/F21 2012-2019 / 120i 2015-2016 (N13)
- BMW / 1 Series / F20/F21 2012-2019 / 120i 2016-2018 (B48)
- BMW / 1 Series / F20/F21 2012-2019 / 125i 2012-2015 (N20)
- BMW / 1 Series / F20/F21 2012-2019 / 125i 2016-2018 (B48)
- BMW / 1 Series / F20/F21 2012-2019 / M135i 2012-2015 (N55)
- BMW / 1 Series / F20/F21 2012-2019 / M135i 2015-2016 (N55)
- BMW / 1 Series / F20/F21 2012-2019 / M140i 2016-2019 (B58)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 220i 2014-2016 (N20)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 228i 2014-2016 (N20)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / M235i 2014-2016 (N55)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / M240i 2016-2021 (B58)
- BMW / 2 Series / F87 2Dr Coupe 2015-2021 / M2 2015-2017 (N55)
- BMW / 2 Series / F87 2Dr Coupe 2015-2021 / M2 Competition 2017 (S55)
- BMW / 3 Series / F30/F31 Saloon/Estate 2011-2019 / 335i 2011-2015 (N55)
- BMW / 3 Series / F30/F31 Saloon/Estate 2011-2019 / M340i 2015-2019 (B58)
- BMW / 4 Series / F32/F33/F36 Coupe/Convertible/Gran Coupe 2016-2019 M440i (B58)
- BMW / 3 Series / F30/F31 Saloon/Estate 2011-2019 / 320i 2015-2019 (B48)
- BMW / 3 Series / F30/F31 Saloon/Estate 2011-2019 / 330i 2015-2019 (B48)
- BMW / 4 Series / 420i / F32 F33 F36
- BMW / 4 Series / 430i / F32 F33 F36
- BMW / X1 / F48 / 2014 Onwards
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 218i 2015 Onwards (B38)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 220i 2016 Onwards (B48)
- BMW / 2 Series / F22/F23 2Dr Coupe/Convertible 2014-2021 / 230i 2016 Onwards (B48)
- BMW / M2 / M2 Competition / F87 2dr Coupe 2018- (S55)
Please check the part number, vehicle details and available options before ordering. Contact TSR Performance for fitment advice.
