CAE Race ultra shifter for 02J 5 speed and 02M/02Q 6 speed transmissions

£900.00
(No reviews yet) Write a Review
SKU:
10045

If you are unsure whether this part is suitable for your vehicle, please get in touch through our Your Project page, supplying your Make, Model and Reg or VIN, plus details of your project.

The CAE race shifters have been race proven in our own race race cars over many years.



CAE Ultra Shortshifter - Optimised for motor sports with the following features:

  • CAE Ultra Shifter for vehicles equipped with a VW 02M / J 5 or 6 speed cable transmission, type MQ250, MQ350. Suitable for all VW AG platform vehicles PQ34/A4, PQ35/A5, PQ35/A6.
  • Short and super-precise shifting travel, exclusively H-pattern.
  • The clutch system remains in its original form.
  • Racing-style appearance.
  • Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
  • Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
  • Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
  • Problem-free shifting of gears under stress or in curves.
  • Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
  • Right/left stops and reverse gear stop adjustable separately.
  • Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.

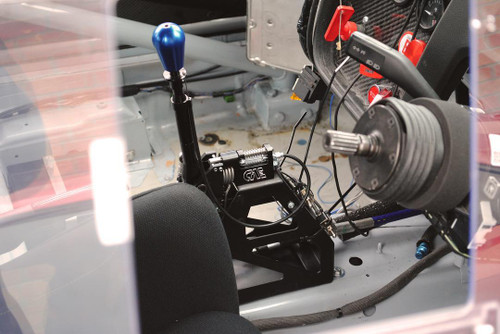

  • Shifter is mounted on the center tunnel and is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.

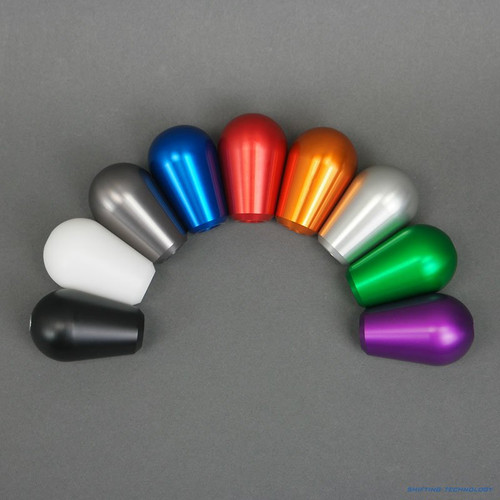

  • Choose your gear lever knob by the following variations:
    anodized aluminium in grey, blue, red, silver, orange; or in Plastic (POM) white or black
    optional against extra charge wrapped with grey alcantara and  blue or red X-seam





Total height: approx. 420 mm
Total length: approx. 220 mm
Dimensions of base plate: approx. 230 x 115 mm
Shifting travel: approx. 65 mm
Selector travel (transverse direction): approx. 65 mm
Weight (complete): approx. 2,45 kg
Offset of the gear lever knop (back / up): approx. 60 / 130 mm


After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall (2 holes diameter 18mm).

Delivery: Shifter completely assembled, covering plate for tunnel opening, CAE HD gearshift cable, all screws and Required small parts

ATTENTION
All CAE Ultra Shifters and tuning products are designed exclusively for motor sports and not permitted for public road traffic !
