HPA Haldex Generation 1 TouchMotion AWD Programmer

£745.00
(No reviews yet) Write a Review

If you are unsure whether this part is suitable for your vehicle, please get in touch through our Your Project page, supplying your Make, Model and Reg or VIN, plus details of your project.

The TouchMotion AWD Programmer from HPA Motorsports is a plug and play device compatible with Gen 1 Haldex 4-motion controllers.

Designed to be fully compatible with both OEM or aftermarket installed Haldex 4-motion differential controllers, the Touch Motion plugs inline and hands control of the rear end behavior over to the driver.

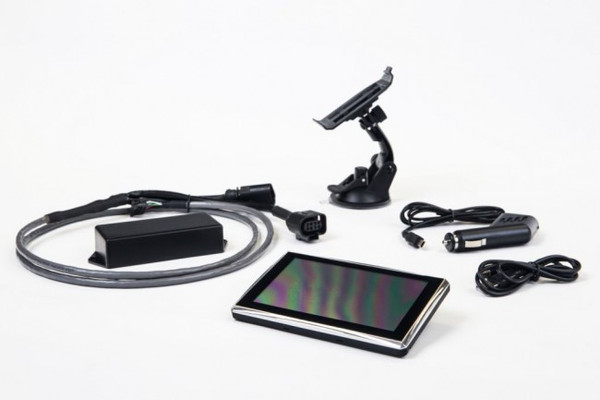

HPA's TouchMotion AWD Programmer consists of three main components. A trunk mounted Control Unit, a Cable to connect the new controller inline, and a wireless Touch Screen Interface.

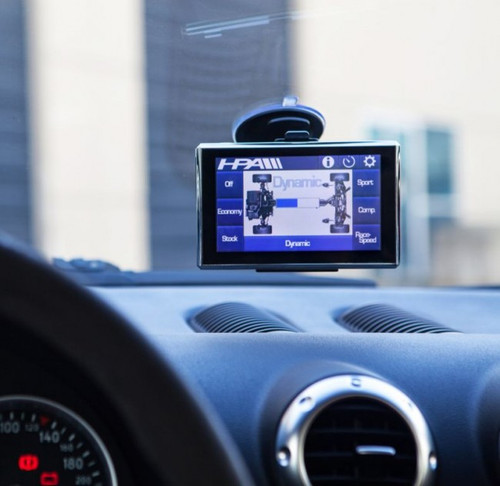

The Touch Screen Interface features a live interactive display that tells the driver how much torque is being transmitted to the rear wheels at any time and offers access to a number of basic and advanced configurations. The touch screen is merely the user interface for the TMAP system and does not need to be present to run the controller as the controller will operate under the last user settings inputted.

Through the touch of the screen, drivers can select not only the preset operating modes of the differential such a Stock, Economy, Sport or Competition, they can go beyond with Dynamic and Race-Speed where they can individualize the profile based on driving habits and needs.

Under Race-Speed, drag racers can digressively or progressively adjust rear engagement. Example; when launching AWD vehicles from prepared surfaces, typically some front wheel spin is desired to better facilitate engine acceleration prior to full rear wheel power transfer avoiding engine bog. As the speed down the track increases, the rear differential engagement can be scaled straight back to reduce drag and increase top speed.

Under Dynamic, drivers can configure which modes to toggle between and what the transitions will be triggered by. Example, set in economy mode for daily commuting, the driver wishes to toggle straight into an aggressive full torque transfer configuration and back when overtaking a vehicle may be required.

Within advanced settings, over-steer compensation can be reduced for drivers that wish to enable more drift tendency, and engagement of differential under braking can be toggled on or off depending on driving style, comfort, or usage habits.

HPA has developed a tool that will allow the driver to tune the drivetrain to meet their specific needs.

The left graph represents all preset modes performing an acceleration run from 40mph to 110mph. The right graph represents Stock, Competition, and Race Speed; the top line represents overall wheel horsepower, while the lower lines differentiate between front wheel horsepower and rear wheel horsepower.

Fits the following Vehicles:

  • Audi TT Quattro (8N)
  • Audi A3 Quattro (8L)
  • Audi S3 (8L)
  • VW Bora 2.8 V6 4motion
  • VW Golf Mk4 2.8 V6 4motion
  • VW Golf Mk4 R32
  • Skoda Octavia Mk1 4x4



Note - This part does not replace the original Haldex controller or pump this allows adjustment of the operation of the original unit and the Haldex must be functioning.
